Novatris 9W LED Downlight Kit with Motion Sensor - Tri-CCT - 90mm

CLA LIGHTING

Product Code: CLA-NOVATRIS-1413

$43.85
White 9W LED Tri-Colour Round Recessed Downlight with Motion Sensor for Modern Australian Homes and Commercial Spaces

Tri-CCT Downlight with PIR Sensor

The Novatris LED recessed downlight has a built-in PIR sensor that lights up when it detects motion within up to 8 metres (installation height = 2.5 metres). This smart feature complements the downlight's LED technology and therefore further reduces energy costs. You also get the flexibility to switch to 3000K (750 lumens), 4000K (850 lumens), or 5000K (800 lumens) upon installation so it can be used in any room. Integrated with a non-dimmable LED driver, and flex and plug for easy installation.

Recessed 90mm Cut Out LED Downlight

  • MULTI-PURPOSE - Provides 3 colour and brightness options suitable for many uses
  • SMART SENSOR - With a built-in 100° PIR sensor that switches on the light when triggered with heat and motion
  • ENERGY SAVING - Features LED lighting technology plus power-saving sensor
  • MINIMALIST - White round trim and frosted white lens will match any home interior style
  • DIY READY - If you have existing installed in-ceiling sockets and a compliant environment, simply plug in!
  • PEACE OF MIND - IC-4 rated, meaning safe to come into close contact with building insulation and can be installed without minimum clearances

Specifications

  • Cut Out Size: Ø90mm
  • Fixture Depth: 60mm
  • Frame Diameter: 115mm
  • Frame Style: White round
  • Housing and Heat Sink Material: Plastic and aluminum
  • Flex & Plug: Included, 1m
  • Input Voltage: 220-240V 50Hz
  • Inbuilt constant current driver included
  • Wattage: 9W
  • LED Chips: SMD2835 (12pcs 3000K + 12pcs 5000K)
  • Power Factor: 0.9
  • CRI: ≥80
  • CCT and Lumens: Changeable 3000K (750lm) / 4000K (850lm) / 5000K (800lm)
  • Changeable colours by rear switch
  • Beam Angle: 100°
  • Dimmable?: No
  • Suitable For 2-way Switching?: Yes
  • Double Insulated?: Yes
  • Ambient Temperature: -20 to 40°C
  • IP Rating: IP40 (IP44 for front face)
  • Lifetime: 30,000 hours regular home use
  • EESS Registration Number: E1249

Sensor Specifications

  • Sensor Type: PIR
  • Sensor Wattage: <0.5W
  • Recommended Installation Height: 1.8-2.5m
  • Detection Range: Ø4m (H1.8m installation), Ø8m (H2.5m installation)
  • Detection Angle: 100°
  • Motion Detection Distance: Max. 8m
  • Motion Detection Speed: 1.5m/s
  • Note: The detection distance will vary with change of installation height
  • Time Delay: 70±10s
  • UV Resistant?: Yes
  • Manual Override Allowed?: No

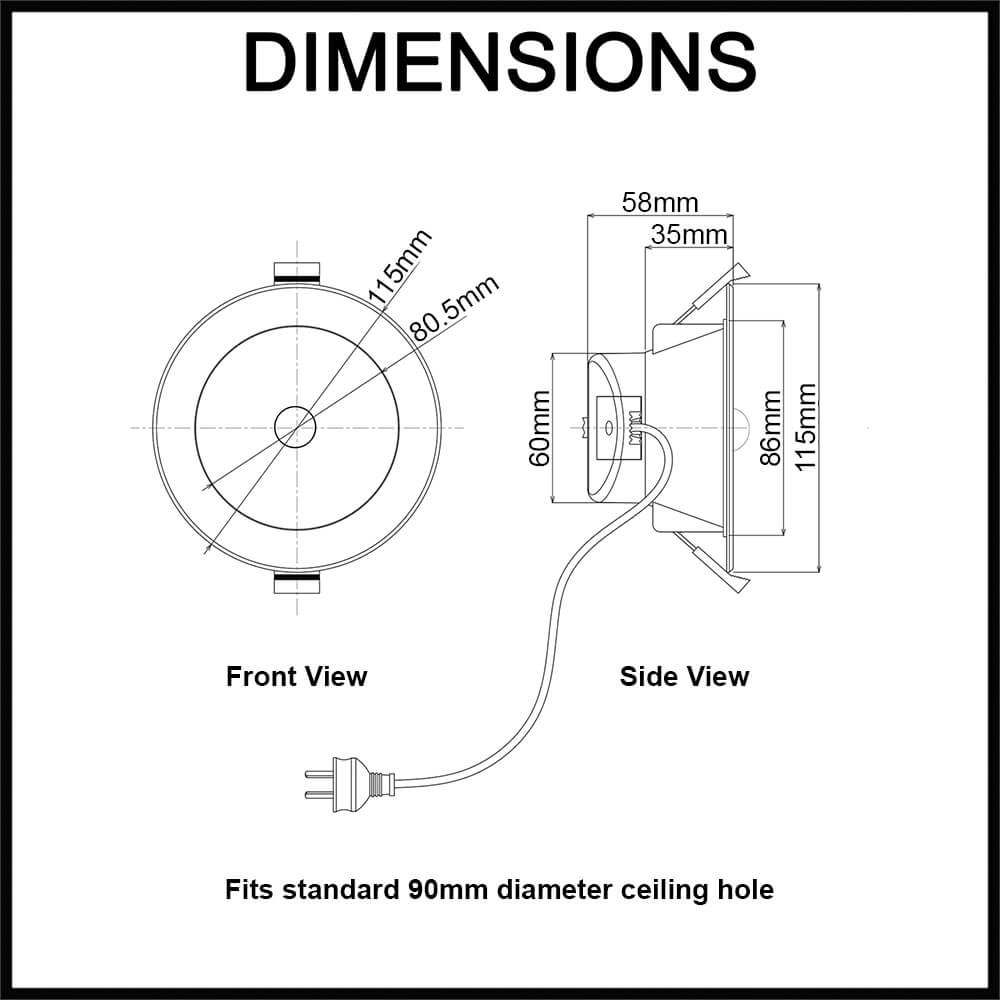

Dimensions

novatris down light kit motion sensor dimensions

Warranty

3 year replacement warranty. Conditions apply - See Terms and Conditions of Trade.

(No reviews yet) Write a Review

This Novatris LED downlight with motion sensor is a smart lighting option for walk-in wardrobes, hallways or interior areas where the light does not need to be always on. It has a detection range of up to 8 metres, and colours can be switched to 3000K, 4000K, and 5000K - good for general purpose and task lighting. Quality white trim and comes with 1m flex and plug.
