Garden Double Spiked Pole Light - 12V MR16 - 316 Stainless Steel

CLA LIGHTING

Product Code: CLA-SPM2ALSS-1277

$260.75
CLA Lighting 316 Stainless Steel Outdoor Garden Spike Light with Adjustable Head for Australian Landscapes

Double Spiked Pole Light for Exterior Landscape

  • HEAVY DUTY - Made of 316 stainless steel that provides an added resistance against corrosion, for optimum performance and longevity
  • VERSATILE- A safe and practical lighting technique that enhances any modern outdoor landscape especially at night time; the two adjustable heads will provide more light than single spike lights
  • SAFE - Dust tight and weather proof; tested and approved to IP65 rating (Install with waterproof connections and circular cable to avoid moisture ingress)
  • FLEXIBLE - Can be easily repositioned to achieve the perfect illumination as seasons change; the double heads are also tiltable and rotatable
  • EFFICIENT CONNECTION - Safe to install and use; requires two-wire low voltage connection (Connector not included)

Specifications

  • Height: 1000mm
  • Height of Head: 110mm
  • Diameter of Head: 60mm
  • No. of Heads: Two (2) adjustable heads
  • Swivel: 90° tilt & 270° swivel
  • Globes Included?: No
  • Lamp Base: GU5.3
  • Globe Connection: 2 x MR16
  • Globe Compatibility: Accepts LED or max. of 20W halogen globe
  • Cable Length: 900mm (Included in the box)
  • Cable Placement: 380mm from the bottom end of the spike
  • Material: 316 Stainless Steel
  • Finish: Clear anodised
  • Corrosion Treatment?: Yes
  • Input Voltage Range: 12-25V AC/DC
  • IP Rating: IP65 (Dust tight and weather proof)
  • EESS Registration Number: E1249
  • To maintain the IP rating, use circular cable in junction
  • For parallel and single connection, use an appropriate IP68 connector (CONN01, CONN02)
  • Globe, transformer, and switch controls are not included.

Choosing the Right LED Driver for Your Outdoor Light

Complete your outdoor lighting setup with compatible MR16 bulbs and waterproof control gears from CLA Lighting. Since MR16 globes run on low voltage (often at 12V), they require a power transformer to make sure they work properly. When choosing a transformer or LED driver, you have to consider the number of bulbs you want it to power multiplied by the wattage. It's advised that the total wattage of all bulbs should not exceed 80% of the driver's wattage. For example, if you choose to power 4 x 6W MR16 globes (total of 24W) from one LED driver, a 30W driver is required. See table below for a more detailed reference.

Recommended Globes Type Wattage Recommended Control Gears to Run Globes Type Min-Max Load Qty of Globe/s per Control Gear
CLAMR16FNVCESH35W Halogen 35W ETH50.302VA Transformer 10W-40W 1
MR1601A
MR1602A		 LED 6W ETH50.302VA Transformer 10W-40W 2-6
CLA111011 LED Driver 1-8W 1
CLA113011 3-24W 3
CLA115011 5-40W 5
CLA1110011 10-80W 10
CLA1115011 15-120W 15
CLA1120011 20-160W 20
OTTER1 1.2W-9.6W 1
OTTER5 15-120W 15

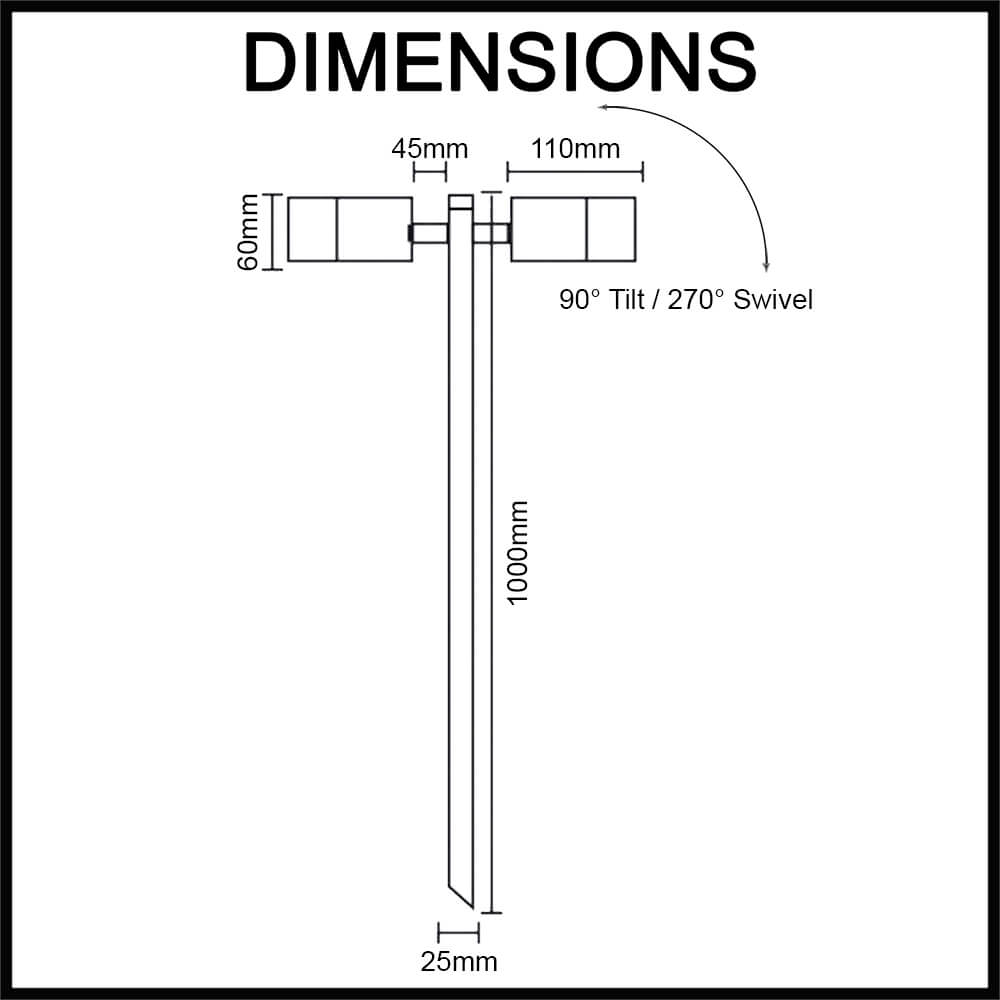

Dimensions

Installation

This product must be installed by a licensed electrician. Installation instructions sheet is provided in the product box.

Warranty

2 year replacement warranty. Conditions apply - SeeÿTerms and Conditions of Trade.

(No reviews yet) Write a Review

This Double Spiked Pole Light comes with two adjustable heads attached to a long spiked pole, designed to be inserted directly into the ground and to accentuate outdoor garden elements. It's tested and approved to IP65, meaning it's fully dust-tight and protected against low-pressure jets. The 316 stainless steel composition provides an added corrosion resistance, hence it will last long for outdoor use. Globe, transformer, and switch controls are not included.
