Recessed Round Inground Light - MR16 - 90mm Copper

CLA LIGHTING

Product Code: CLA-IGMSMC-1874

$208.60
CLA Lighting IGM Round Solid Copper Exterior Recessed Inground Up Light with IP67 Waterproof Rating for Australian Outdoor Landscapes

Solid Copper Outdoor Lighting

This 12V Inground Recessed Light from CLA Lighting is a perfect complement to any house exterior design. As a low profile marker light, it is ideal for illuminating driveways and facades. The solid copper construction of its faceplate ensures that it does not corrode over time. The IP67 rating means that it is an excellent outdoor light because it is fully dust tight and waterproof. The overall design makes it possible for this up light to be driven over or walked on since it can withstand a maximum load of up to 600kg.

Premium Quality Recessed Light

  • COMPACT - Well-designed small uplighting fixture that is perfect for driveways, pathways, and other landscapes
  • DESIGNED FOR AUSTRALIAN WEATHER - Its IP67 (waterproof and dust tight) rating makes it ideal for Australian weather conditions
  • CORROSION PROOF - The solid copper faceplate does not risk getting affected by corrosion
  • LED READY - Compatible with energy-efficient lights with MR16 globe base
  • CONVENIENT - Comes with a durable plastic sleeve/canister upon purchase, great for concrete installations and for overall maintenance of the fixture

Specifications:

  • Type: Inground Uplight
  • Face Diameter: 90mm
  • Canister Height: 105mm
  • Cut-Out: 73mm (with canister)
  • Cable Length: 950mm
  • Faceplate Shape: Round
  • Faceplate Material: Solid Copper
  • Housing Material: Solid Copper
  • Faceplate Finish: Polished Copper
  • Housing Finish: Clear Anodised
  • Sleeve/Canister Material: Plastic
  • Diffuser Material and Colour: Clear 4mm tempered glass
  • Maximum Load Capacity: 600kg (can be driven over)
  • Input Voltage: 12-25V DC / AC
  • External control gear required
  • Globe Included?: No
  • Globe Connection: 1 x MR16
  • Globe Compatibility: Accepts LED or max. of 20W halogen globe
  • IP Rating: IP67 (Dust tight and waterproof)
  • Mounting: Recessed / Inground
  • Use an appropriate IP68 connector
  • Plastic sleeve included (must be used when installing in concrete)
  • Fitting slides and screws into sleeve

Choosing the Right LED Driver for Your Outdoor Light

Complete your outdoor lighting setup with compatible MR16 bulbs and waterproof control gears from CLA Lighting. Since MR16 globes run on low voltage (often at 12V), they require a power transformer to make sure they work properly. When choosing a transformer or LED driver, you have to consider the number of bulbs you want it to power multiplied by the wattage. It's advised that the total wattage of all bulbs should not exceed 80% of the driver's wattage. For example, if you choose to power 4 x 6W MR16 globes (total of 24W) from one LED driver, a 30W driver is required. See table below for a more detailed reference.

Recommended Globes Type Wattage Recommended Control Gears to Run Globes Type Min-Max Load Qty of Globe/s per Control Gear
CLAMR16FNVCESH35W Halogen 35W ETH50.302VA Transformer 10W-40W 1
MR1601A
MR1602A		 LED 6W ETH50.302VA Transformer 10W-40W 2-6
CLA111011 LED Driver 1-8W 1
CLA113011 3-24W 3
CLA115011 5-40W 5
CLA1120011 20-160W 20
OTTER1 1.2W-9.6W 1
OTTER5 15-120W 15

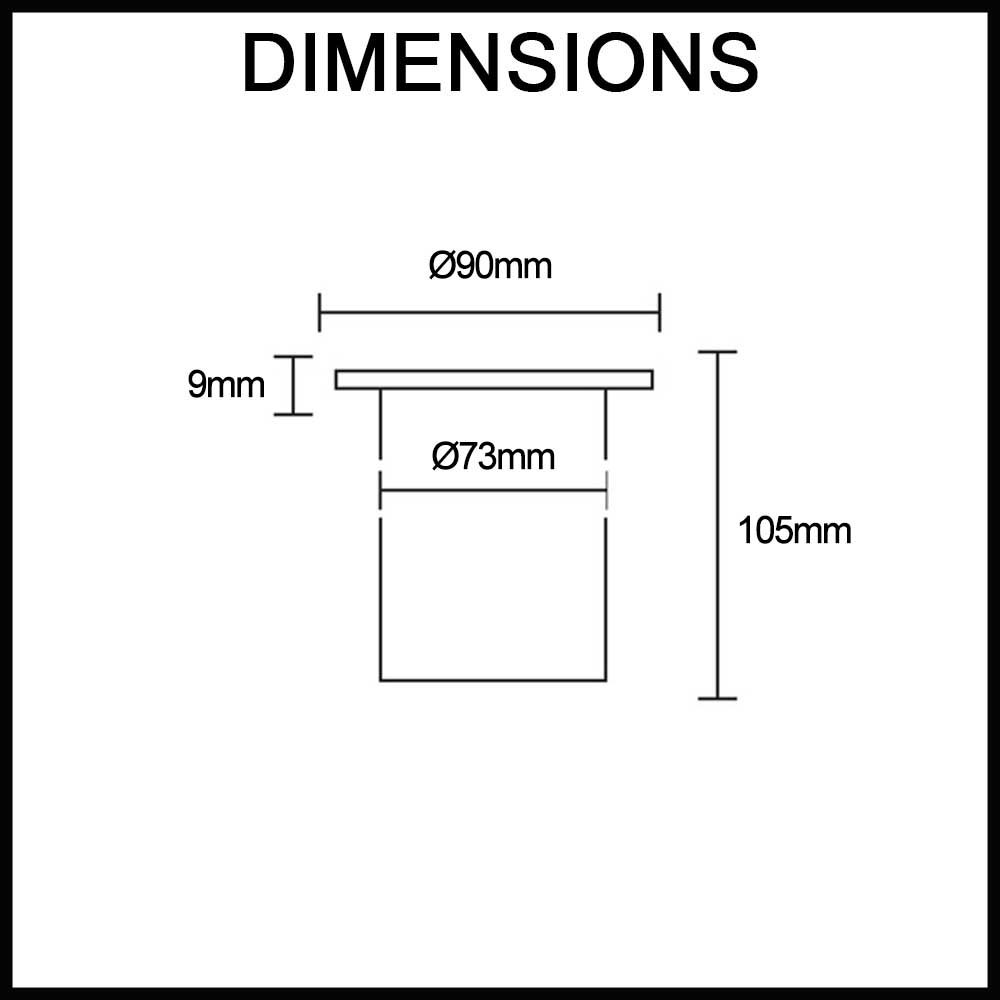

Dimensions:

Round inground recessed up light dimensions guide

Warranty

2 year replacement warranty. Conditions apply - SeeÿTerms and Conditions of Trade.

(No reviews yet) Write a Review

Recessed Inground Up Lights made from Copper are among the most durable and sturdy lighting additions for exterior spaces such as patios, gardens, and landscapes. It can accommodate an MR16 globe of up to 20W. External control gear and globe are required but sold separately.

$208.60
UPC:
9326191026560
