Shieldtri Outdoor 9W/18W LED Batten Light - Tri-Colour - 600mm

CLA LIGHTING

Product Code: CLA-SHIELDTRI1-1284

$87.80
CLA Shieldtri LED Batten Waterproof Outdoor Light in Matte Grey finish for garages and storage areas in Australia.

Switchable Exterior LED Batten

The Shieldtri series of outdoor batten lights not only have a tri-CCT feature but also a dual power switch, so you get a variety of light setting combinations. You can select from 3000, 4000, and 5000 kelvins and choose between 9W and 18W, so you can get 6 brightness levels ranging from 800 to 2000 lumens. The batten uses 120 pcs of SMD2835 LEDs and is suitable for use with a 2-way switch and with 3-wire motion or microwave sensors (not included). Being IP65 rated, the batten LED fixture can be used for various exterior applications and installed in your garage, storage area, under eaves, and even in high-moisture areas.

Multi-Use Batten LED Lights

  • MULTIPLE APPLICATIONS - The dual power switch and the tri-CCT feature can produce multiple settings
  • ADJUSTABLE - A switch allows you to choose from three colour temperatures: 3000K, 4000K, or 5000K
  • DUST TIGHT AND WEATHER PROOF - Rated IP65 so the fixture can be used for any outdoor application, even high-moisture places
  • SENSOR SUITABLE - Can be used with a 3-wire motion sensor or a microwave sensor (not included)
  • EASY TO INSTALL - Comes with mounting brackets, a connector, and instructions for easy installation by a licensed electrician

Specifications

  • Dimensions: 600mm x 80mm x 75mm
  • Weight: 0.78kg
  • Housing and Diffuser: PC
  • Input Voltage: 220-240V 50Hz
  • Driver: Inbuilt Constant Current LED driver
  • CRI: >80
  • Energy Consumption: 9W/18W
  • CCT: Changeable 3000K/4000K/5000K
  • Lumens: 800/1600, 1000/2000, 900/1800
  • LED Chips: 120pcs SMD2835
  • Power Factor: 0.9
  • Ambient Temp: -20 to 40 degrees Celsius
  • Beam Angle: 110 degrees
  • Lifetime: 30,000 hours regular home use
  • IP Rating: IP65
  • IK Rating: IK08
  • EESS Registration Number: E1249

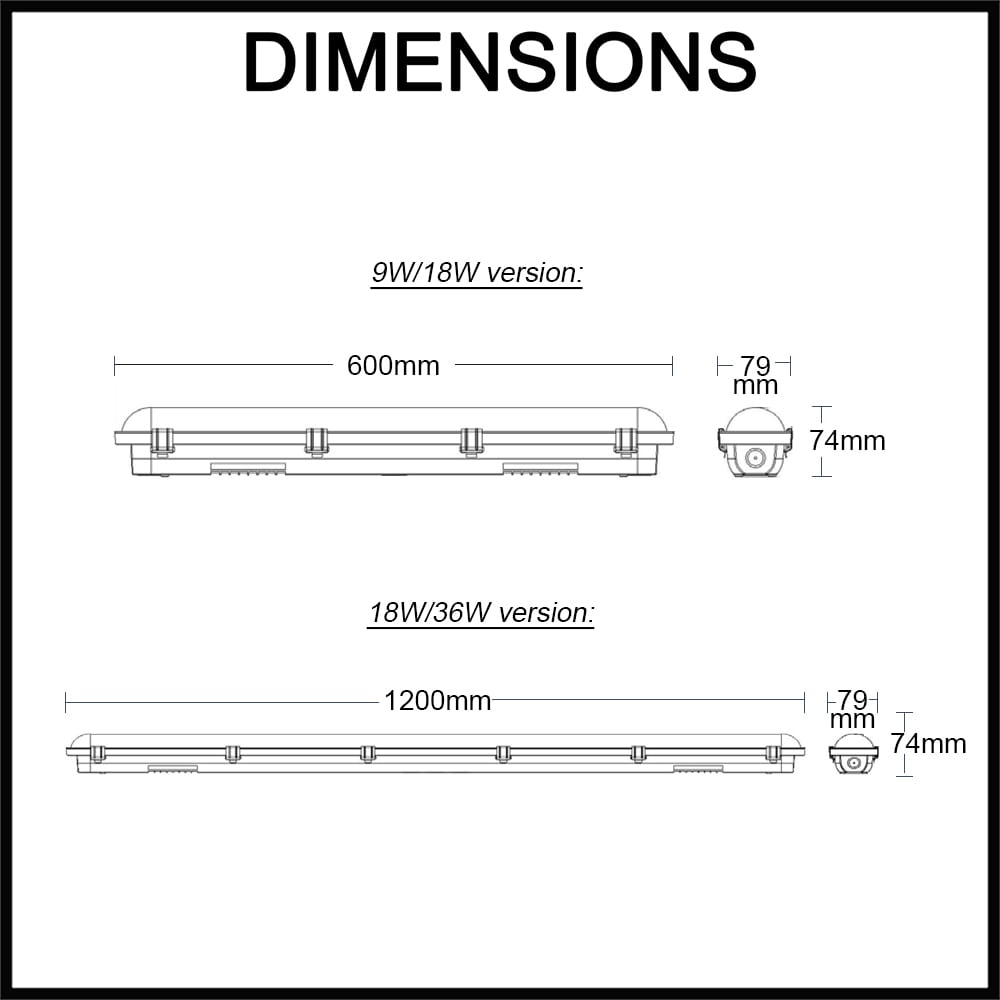

Dimensions

Weather Proof Batten Led Light

Installation

This product must be installed by a licensed electrician. Installation instructions sheet is provided in the product box.

Warranty

3 year replacement warranty. Conditions apply - See Terms and Conditions of Trade.

(No reviews yet) Write a Review

This outdoor LED batten light can be used for various exterior applications as it is dust tight and weather proof. A wattage switch inside the driver allows you to choose between 9W and 18W, and another switch will let you adjust the colour temperature. The 600mm length is perfect for smaller spaces (a brighter 1200mm version is also available).
